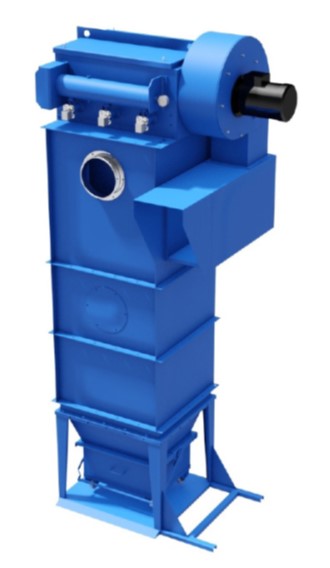

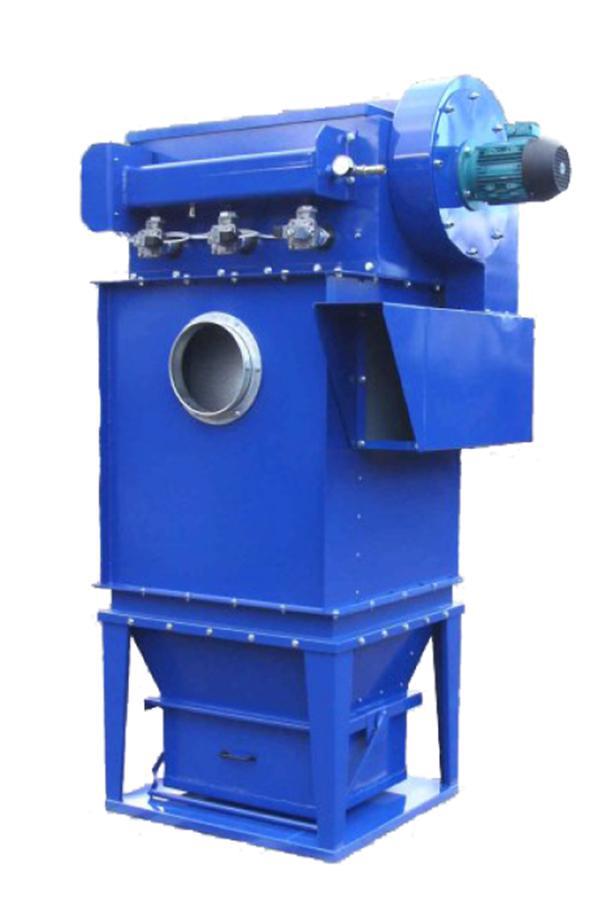

MJC, mini cartridge dust collector
Compact reverse jet tubular cartridge filters

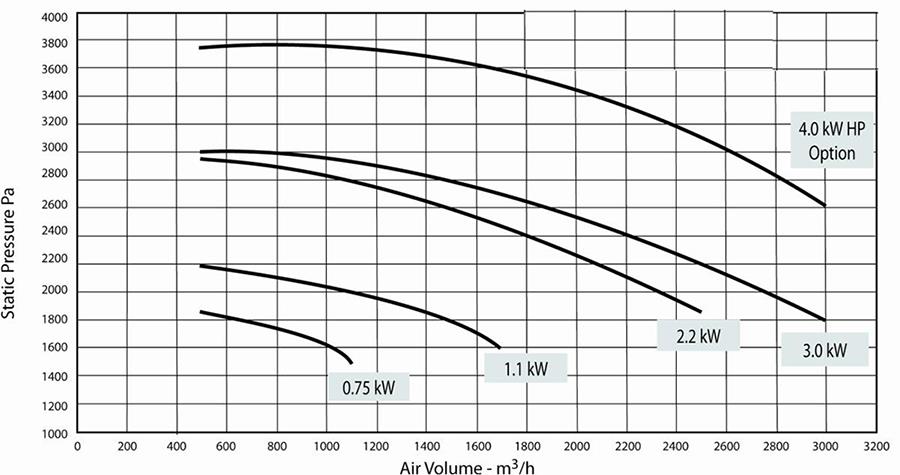

Suitable for many different applications that generate light to medium volumes of any dust. The MJC Mini range of compact reverse jet tubular cartridge filters was developed for continuous operation in industrial process filtration and dust collection applications – incorporating Nederman's patented UniClean cartridge technology for maximum cleaning efficiency and extended life.Key features Standard filter range from 4 to 40m2 (43-430ft2)Robust weatherproof fully welded steel construction Space saving integral fans from 0.75 to 3.0kW (1-4hp)4.0kW (5hp) higher pressure fan availableATEX compliant features for St1, St2 and St3 dustsIntegral pre-separation chamber, cross flow / down flow inlet air patternModular interchangeable assembliesTypical dust control and process applications:
-
Materials handling – conveying, screening, sieving, mixing, bin/silo venting
-
Shot, sand and bead blasting
-
Welding and cutting processes
-
Chemical, plastics and pharmaceutical powders
证书 |
CE, EX |
压缩空气需求 |
5 to 5,5 bar |
安装 |
室内, 室外 |
材料 |
Robust construction in 2.5 mm thick steel, fully welded and painted |
适用于易爆粉尘 |
是 |
清灰方式 |
脉冲清灰 |
应用 |
粉尘, 烟气 |
工作压力(千帕) |
-8,0 to 2,0 |
灰斗容量 |
75 or 150 l |
过滤面积(平方米) |
4 to 40 |
性能(最大风量m3/h) |
3600 |
工作温度 |
-20 to 80 Dec. C |
除尘器类型 |
滤筒式过滤器 |
技术数据声明
Open base fi lter without hopper and collection bin
技术数据声明
Open base fi lter without hopper and collection bin
ArtNo: 73008913
Frequency inverter with 2 kPa pressure sensor. 1,5kW. IP66 enclosure
|
ArtNo: 73008914
Frequency inverter with 2kPa pressure sensor. 2,2kW. IP66 enclosure
|
ArtNo: 73008915
Frequency inverter with 2kPa pressure sensor. 4kW. IP66 enclosure
|
ArtNo: 73008916
Frequency inverter with 2kPa pressure sensor. 5,5kW. IP66 enclosure
|
ArtNo: 73008917
Frequency inverter with 5kPa pressure sensor. 7,5kW. IP66 enclosure
|
ArtNo: 73008918
Frequency inverter with 5kPa pressure sensor. 11kW. IP66 enclosure.
|
ArtNo: 73008919
Frequency inverter with 5kPa pressure sensor. 15kW. IP66 enclosure
|
