Industrial vacuum cleaner 600A EX
A powerful stationary dust collector

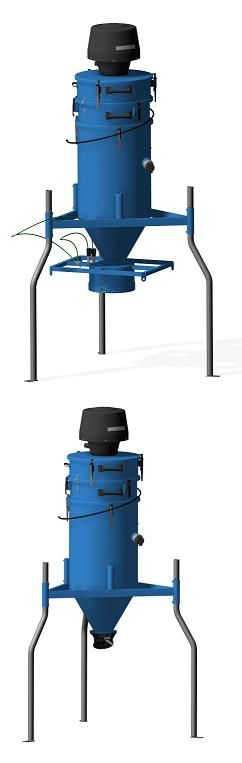

A powerful stationary dust collector, excellent high vacuum for suction over long horizontal and vertical distance.You can choose a dust collector with bigbag holder and counterweight discharge valve or a dust collector with a manual discharge valve. Equipped with efficient and self-cleaning bag filters. 600A EX is category 2GD equipment according to directive 2014/34/EU. This means that it may be placed in areas classified as zone 21 or 1 according to directive 1999/92/EC. However, 600A EX may not be used to vacuum combustible material; they are only for use with non-combustible dusts. This is since they lack a protection system to limit the effects of an internal explosion, hence the X in ATEX marking. ATEX approved equipment: II 2GD c IIB 60°C (T6) X
-
Robust and efficient self-cleaning filter
-
Very powerful and reliable ejector as vacuum producer
-
Very powerful and reliable ejector as vacuum producer
-

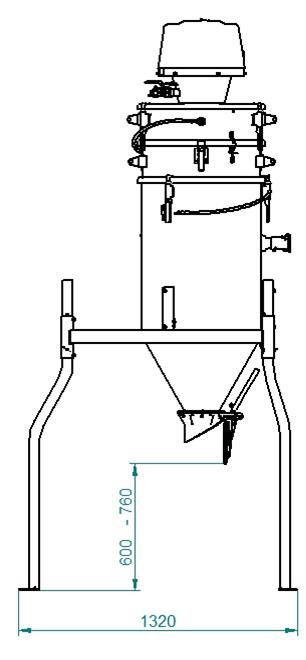

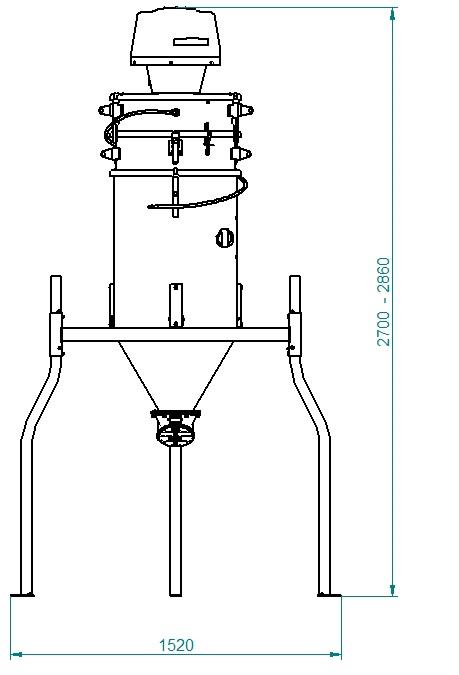

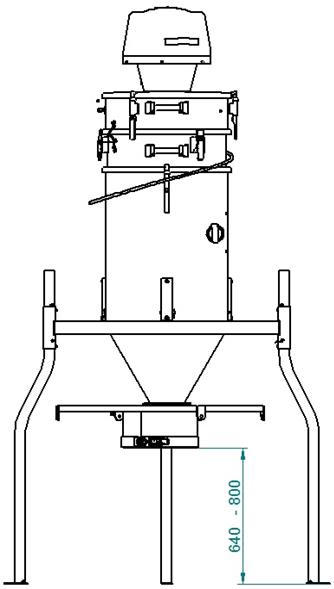

Legs with two height options
证书 |
CE, EX |
安装 |
室内 |
清灰方式 |
压缩空气清灰 |
应用 |
粉尘, 颗粒物, 沙砾, 切屑 |
灰斗容量 |
146 |
过滤面积(平方米) |
2,5 |
除尘器类型 |
滤袋 |
滤芯 |
Antistatic Polyester |

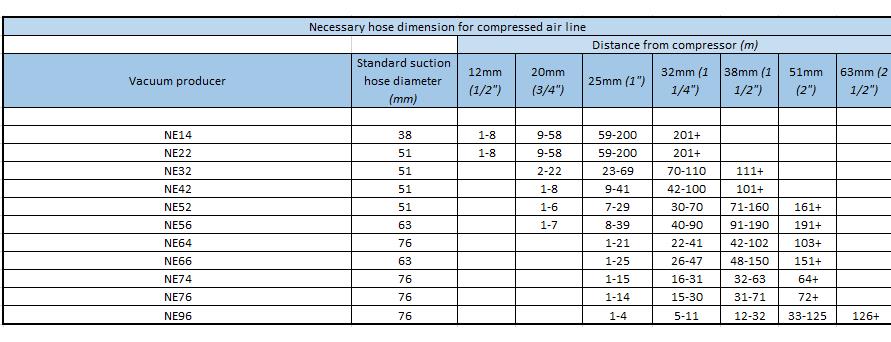

Compressed air requirement |
5,3 Nm3/min |
Max airflow (m³/h) |
318 |
Noise level (dB(A)) |
75 |
Max vaccum (kPa) |
-78 |
Inlet |
76 mm (reducer to ø 51 mm included) |
重量(公斤) |
240 |
Hose length (m) |
10 |
Hose diameter (mm) |
51 |
技术数据声明 |
ATEX - EX II 2 GD c IIB 60°C(T6) (Not for combustible dust) |
600A EX, NE74, 1 quick coupling, with manual discharge valve
600A EX, NE74, 1 quick coupling, with bigbag holder and counterweight discharge valve
ArtNo: 43627001
S200料仓摩擦片
|
ArtNo: 43832200
PU管d51,10m
|
ArtNo: 43840250
地板吸头 d51/400/65
|
ArtNo: 43842150
抽排管防静电弯头 d51
|
|
ArtNo: 43851050
铁屑抽吸装置 d51 l500
|
ArtNo: 43860200
手持软毛刷吸嘴d51
|
ArtNo: 43862001
手持锥形抽吸头d51
|
ArtNo: 43880300
软管锥形变径 d76-51
|
