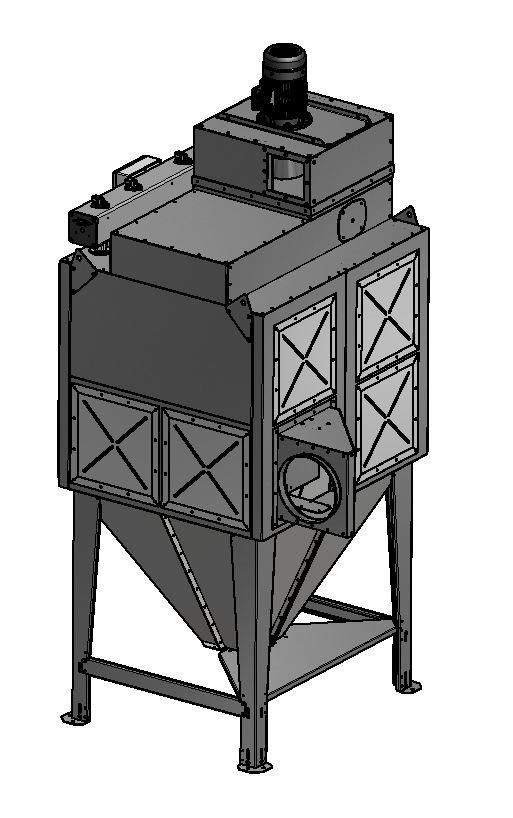

FMC(Z) cartridge filter

Compact cartridge filter equipped with explosion membranes for solving combustible dust problems within a wide range of industries.

The FMCZ200 filter is a compact cartridge filter equipped with explosion membranes. The filter is ideal for solving dust problems within a wide range of industries where there is dust with a potential explosion hazard (St1, St2 or St3 dust up to KSt-value = 600 bar*m/s). The filter is designed for an outdoor location.
The FMCZ200 filter is designed for explosive dust and contains a type certificate by a Notified Body under the ATEX directive. The certificate identifies the interior raw gas section of the filter as zone 20 and the interior clean gas section as zone 22. The filter allows a pred,max up to 0,3 bar.

Antistatic cartridges mandatory: CA 140
Inspection and change of the filter cartridges can take place within a few minutes.
Front service of the cleaning valves, the controller, the compressed air tank and the filter cartridges.
Intelligent ECO-efficient filter controller minimize maintenance and energy costs.
Quick release waste bin

技术参数
证书	CE, EX
压缩空气需求	6 bar
压缩空气消耗量	45 Nl per cleaning pulse
材料	Housing in galvanised sheet steel (2mm)
适用于易爆粉尘	是
清灰方式	脉冲清灰
应用	烟气, 粉尘
工作压力（千帕）	-6,0 to 1,5. Operation of the filter with overpressure only allowed if it is a silo top version.
灰斗容量	50 or 100 or without
性能（最大风量m3/h）	21000
工作温度	-20 to 70 Deg. C.
除尘器类型	滤筒式过滤器

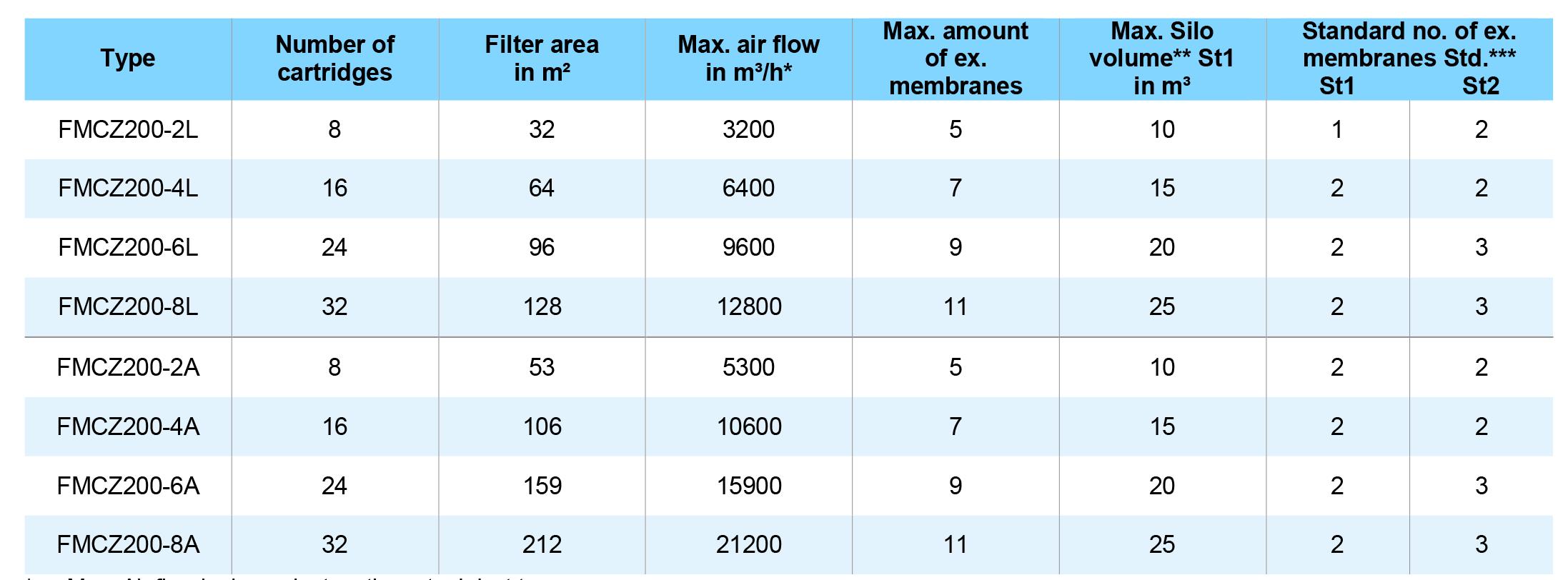

型号16

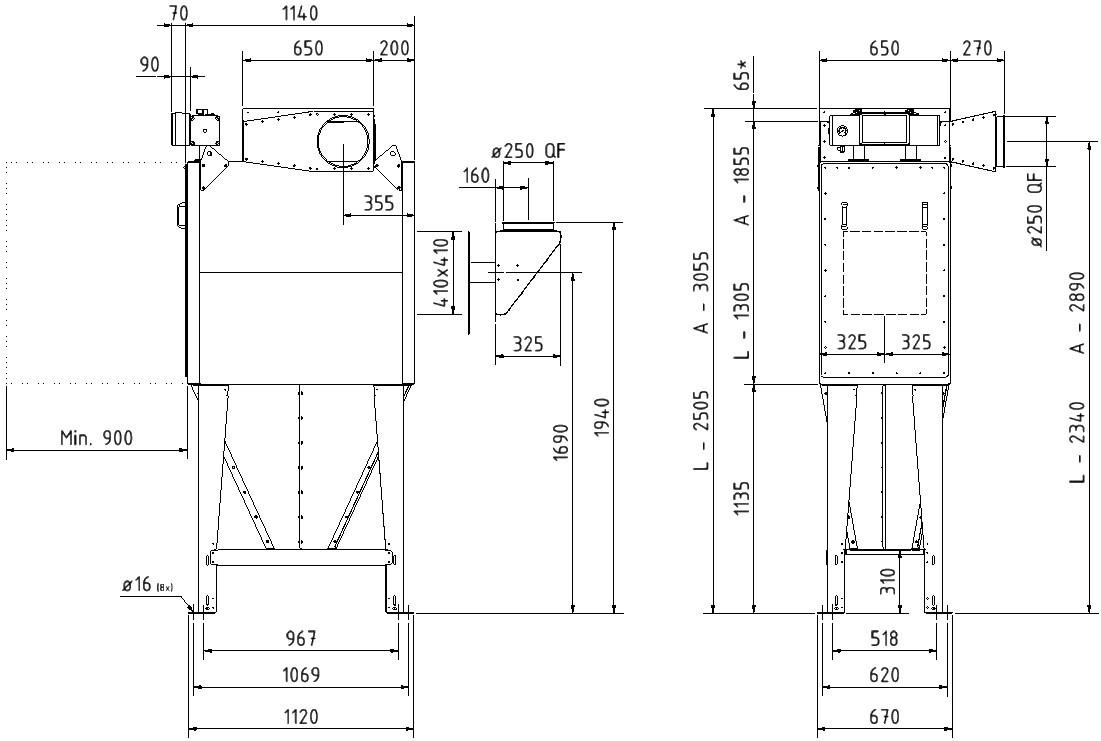

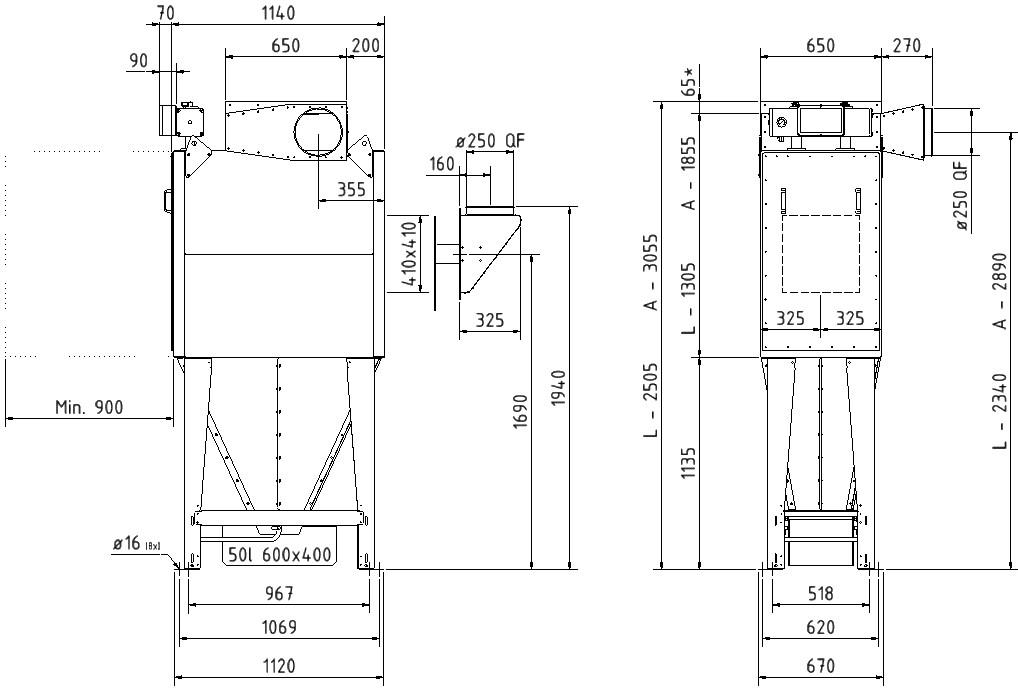

FMCZ 200-2L

ArtNo: FMC(Z)200-2Ls

滤芯数量

滤芯

Polyester (std)

FMCZ 200-2L

ArtNo: FMC(Z)200-2Lc

滤芯数量

滤芯

Cellulose

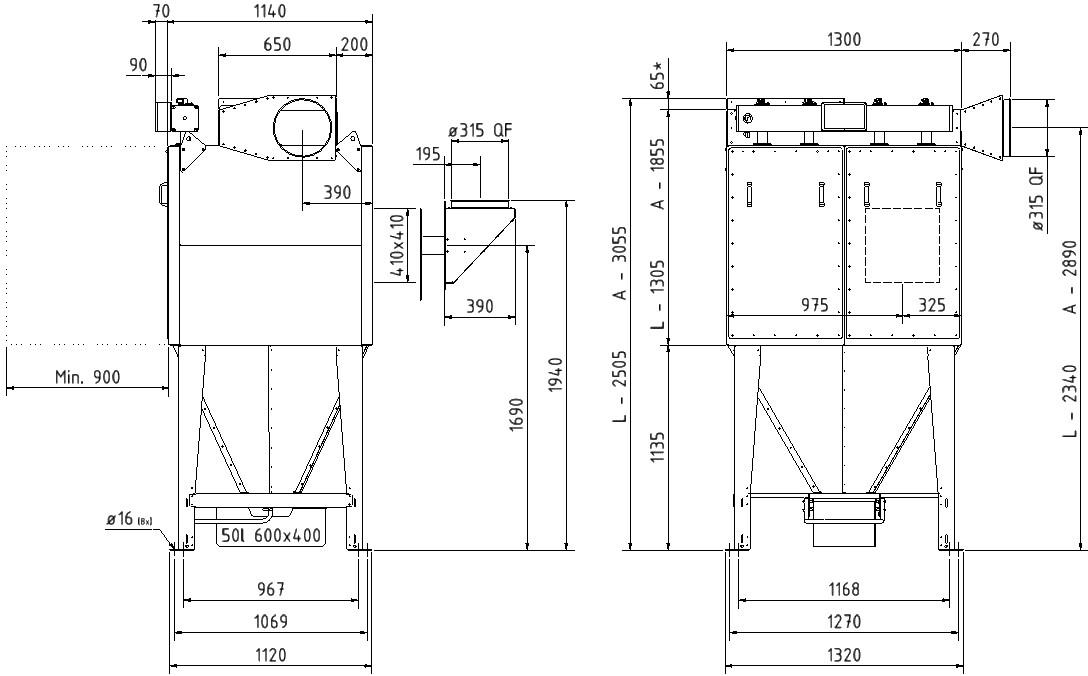

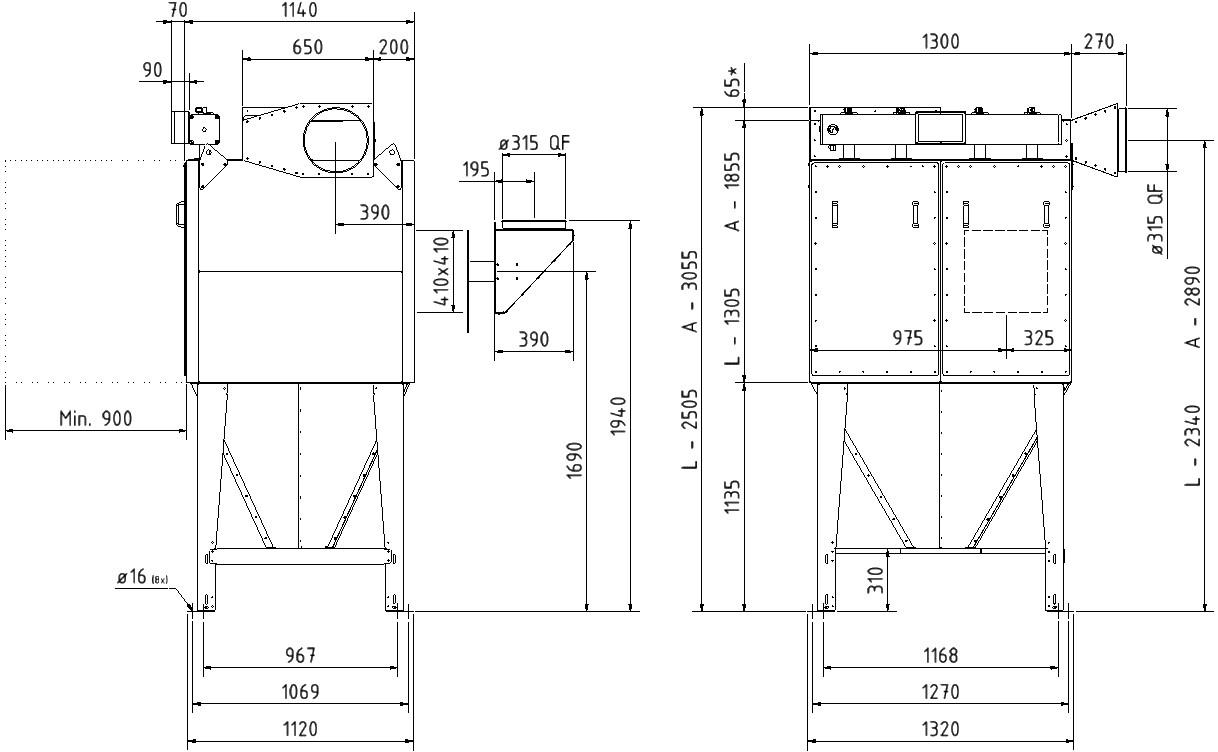

FMCZ 200-4L

ArtNo: FMC(Z)200-4Ls

滤芯数量

滤芯

Polyester (std)

FMCZ 200-4L

ArtNo: FMC(Z)200-4Lc

滤芯数量

滤芯

Cellulose

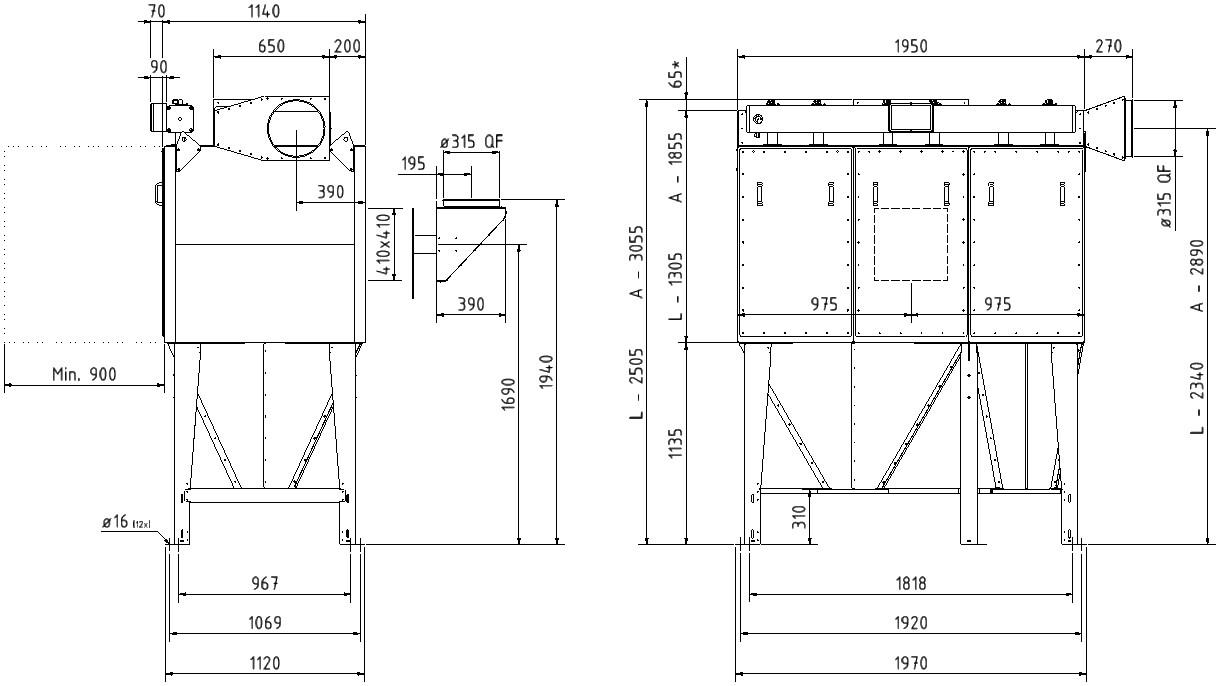

FMCZ 200-6L

ArtNo: FMC(Z)200-6Ls

滤芯数量

滤芯

Polyester (std)

FMCZ 200-6L

ArtNo: FMC(Z)200-6Lc

滤芯数量

滤芯

Cellulose

FMCZ 200-8L

ArtNo: FMC(Z)200-8Ls

滤芯数量

滤芯

Polyester (std)

FMCZ 200-8L

ArtNo: FMC(Z)200-8Lc

滤芯数量

滤芯

Cellulose

FMCZ 200-2A

ArtNo: FMC(Z)200-2As

滤芯数量

滤芯

Polyester (std)

FMCZ 200-2A

ArtNo: FMC(Z)200-2Ac

滤芯数量

滤芯

Cellulose

FMCZ 200-4A

ArtNo: FMC(Z)200-4As

滤芯数量

滤芯

Polyester (std)

FMCZ 200-4A

ArtNo: FMC(Z)200-4Ac

滤芯数量

滤芯

Cellulose

FMCZ 200-6A

ArtNo: FMC(Z)200-6As

滤芯数量

滤芯

Polyester (std)

FMCZ 200-6A

ArtNo: FMC(Z)200-6Ac

滤芯数量

滤芯

Cellulose

FMCZ 200-8A

ArtNo: FMC(Z)200-8As

滤芯数量

滤芯

Polyester (std)

FMCZ 200-8A

ArtNo: FMC(Z)200-8Ac

滤芯数量

滤芯

Cellulose

FMC(Z) cartridge filter

Compact cartridge filter equipped with explosion membranes for solving combustible dust problems within a wide range of industries.

FMCZ 200-2L

FMCZ 200-2L

FMCZ 200-4L

FMCZ 200-4L

FMCZ 200-6L

FMCZ 200-6L

FMCZ 200-8L

FMCZ 200-8L

FMCZ 200-2A

FMCZ 200-2A

FMCZ 200-4A

FMCZ 200-4A

FMCZ 200-6A

FMCZ 200-6A

FMCZ 200-8A

FMCZ 200-8A

适用于本产品的配件 27
