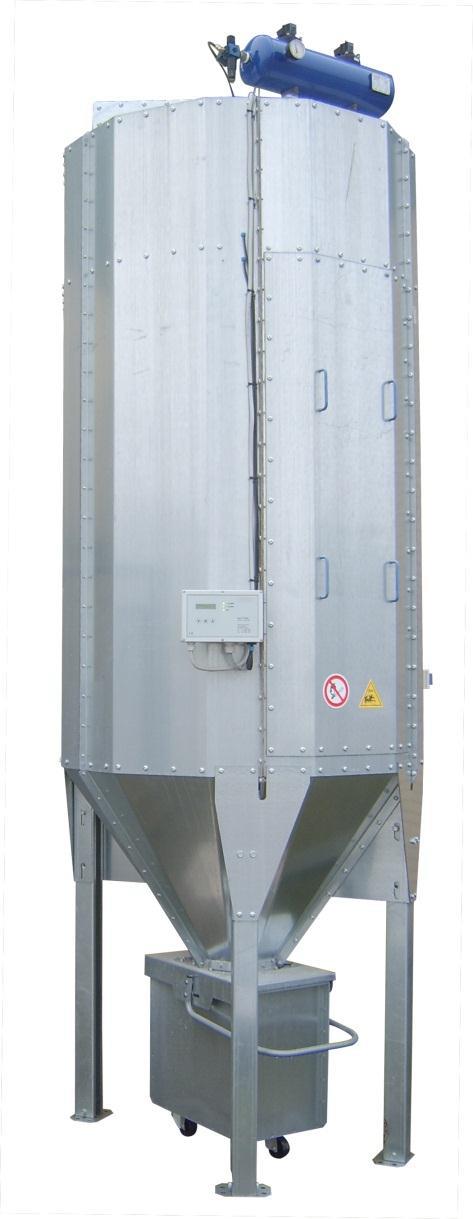

FlexFilter 13 and 18 cartridge dust collector
High vacuum filter used in application with a working vacuum of max. 40.000 Pa (5,80 psi)
The filters are made in galvanised steel sheet and is bolted together, which makes it a very competitive alternative to other high vacuum filters.The FlexFilter 13 and 18 can be used in applications where there is a high content of dry dust particles.The filter can be supplied with either cartridges (UniClean) or cassettes depending on the air flow, the dust type and the dust concentration. The MHFV filter can be delivered in two different heights – type 1300 and 1800.The cartridges/cassettes are cleaned automatically by a high-efficiency, low energy consuming compressed air system activated by an integral electronic controller.
-
Easy to maintain
-
Quick release waste bin
-
Inspection and change of the filter elements can take place within a few minutes
-
Front service of the cleaning valves, the controller, the compressed air tank and the filter elements
-
Available with cartridges or cassettes
证书 |
CE |
标准 |
Designed for ISO 21904 compliance |
压缩空气需求 |
6 bar |
安装 |
室内, 室外 |
材料 |
Housing in galvanised steel sheet (4 mm) |
清灰方式 |
脉冲清灰 |
应用 |
粉尘, 颗粒物, 沙砾, 烟气 |
工作压力(千帕) |
Max. 40.000 (5,80 psi) |
灰斗容量 |
50 or 100, or whitout |
工作温度 |
-20 to 75 Deg. C. |
ArtNo: 5501273
Discharge bin 50 l without wheels
|
ArtNo: 5501274
Discharge bin 50 l with wheels
|
ArtNo: 5501275
Discharge bin 100 l with wheels
|
ArtNo: 5501317
Isolation box for FM pressure tank, 2 modules
|
ArtNo: 5501318
Isolation box for FM pressure tank, 4 modules
|
ArtNo: 5501319
Isolation box for FM pressure tank, 6 modules
|
ArtNo: 5501320
Isolation box for FM pressure tank, 6 modules
|
ArtNo: 5505033
Adaptor for bin with bag
|
ArtNo: 5505034
Adaptor for 50 l bin with bag incl. fitting
|
ArtNo: 5505035
Adaptor for 100 l bin with bag incl. fitting
|
ArtNo: 5505041
Hose set for bin balancing
|
