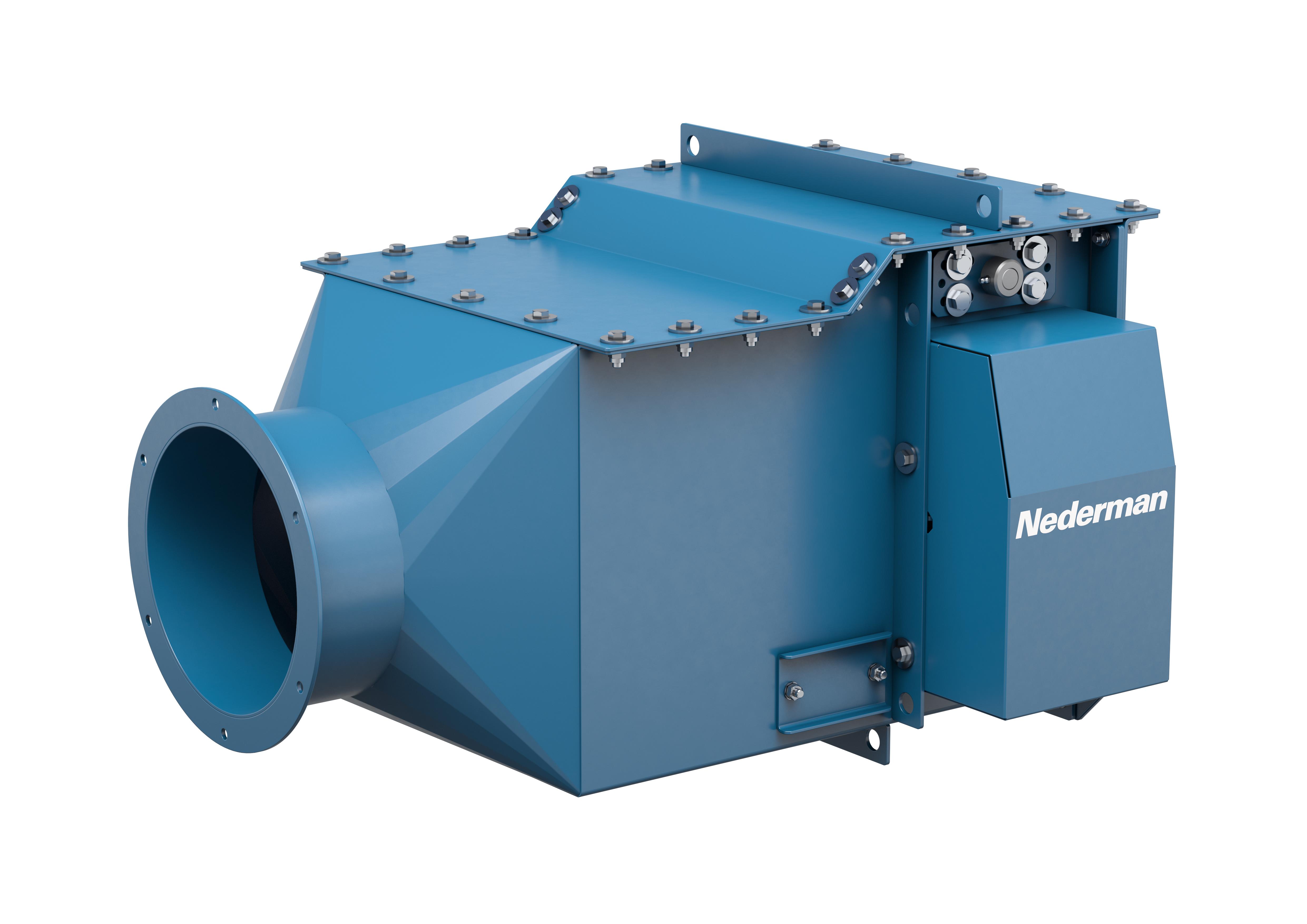

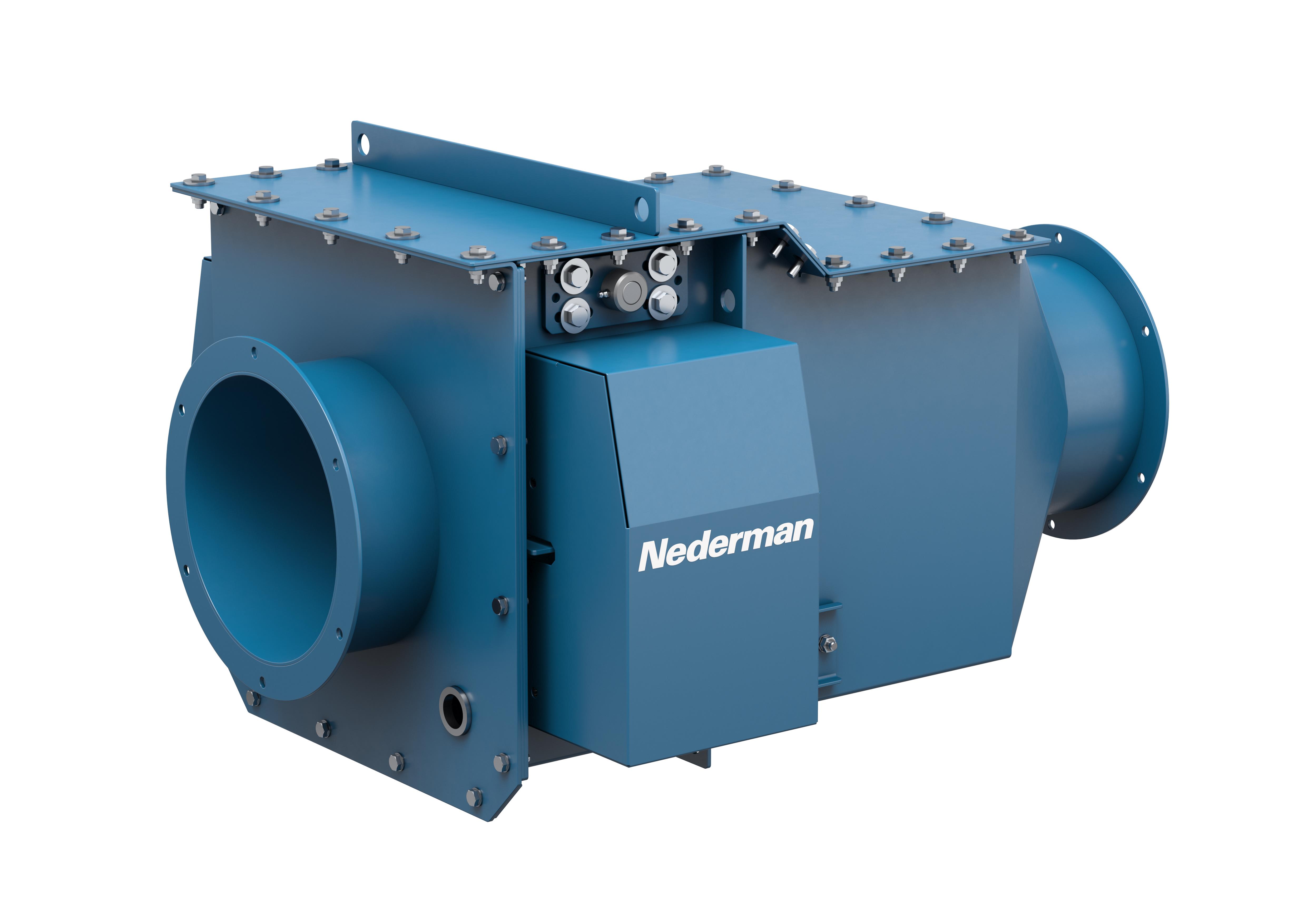

Explosion Isolation Flap Valve CARZ-NS Ø160-250mm
爆炸隔离阀CARZ-NS——用于可燃粉尘应用的保护系统。

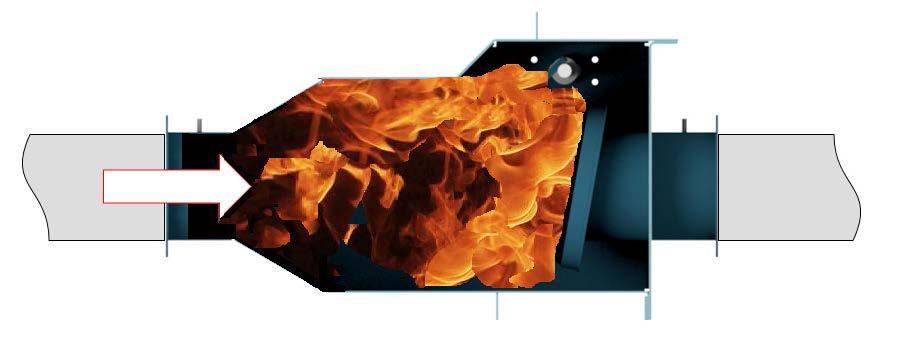

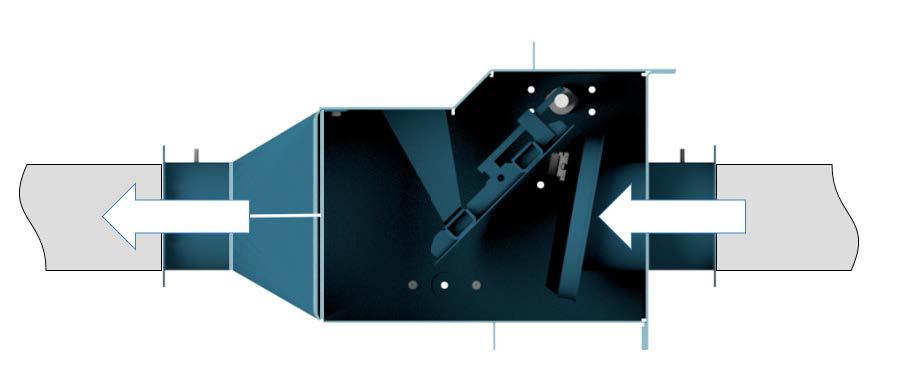

"CARZ-NS爆炸隔离阀能够防止除尘器内的爆炸压力波和火焰通过管道传播到其他工艺单元。使用我们的CARZ-NS隔爆阀可以减少粉尘爆炸对工作人员和设备产生的危害。 工作原理在系统正常操作的条件下，隔爆阀为打开状态。当除尘器内发生爆炸时，爆炸压力波推动闭合装置紧闭于密闭片上，当关闭时，隔离阀被锁定，并且有效阻止爆炸产生的火焰和压力波从除尘器传播到其他工艺单元。 我们为各个行业提供全面的防爆除尘解决方案和防爆隔离阀产品，可用于处理各类可燃粉尘，满足您的多样化需求。"
-
已经过独立测试，满足最新且最严苛的标准和法规
-
符合国际粉尘防爆标准（ATEX、NFPA69、IECEx）
-
市面上最齐全的尺寸选择和除尘器配置，以及最广的应用范围（可用于正负压系统、金属粉尘、St2级粉尘）
-
由尼的曼在认证质量保证体系下制造，保证了最高水平的质量和可靠性。
| 证书 |
CE, EX |
| 材料 |
Welded carbon steel, painted RAL5009 |
| 作业温度 |
-20 - +70°C (0 - 160 F) |
| 环境温度范围 |
-20 - +60°C (0 - 140 F) |
| 技术数据声明 |
Organic dust - PUSH & PULL; metal dust - PULL only |
| Explosion Class ATEX |
St2 |
| Max velocity in duct (m/s) |
35 |
| Minimum velocity in duct |
0 |
| Minimum vessel size, push (m3) |
0,46 |

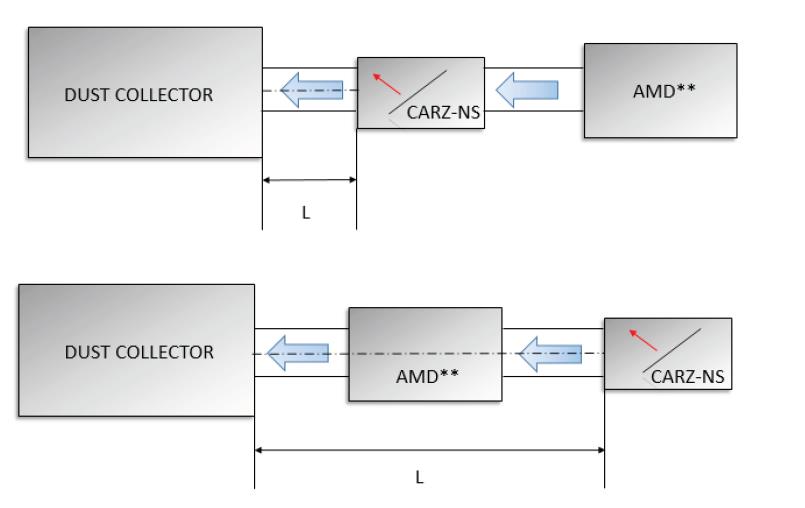

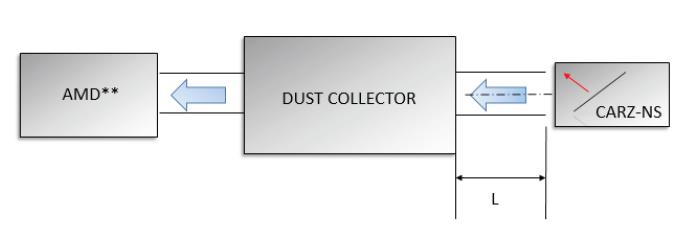

| Install type |
Push and Pull |
| Minimum vessel size, pull (m3) |
0,46 |
| Dust type |
Metallic/Organic |
| Maximum reduced pressurem, Pred (bar) |
0,5 |
CARZ-NS 160 Explosion Isolation Flap Valve QF, Ex D St1, St2
CARZ-NS 160 Explosion Isolation Flap Valve FL, Ex D St1, St2
CARZ-NS 160 Explosion Isolation Flap Valve NW, Ex D St1, St2
CARZ-NS 180 Explosion Isolation Flap Valve QF, Ex D St1, St2
CARZ-NS 180 Explosion Isolation Flap Valve FL, Ex D St1, St2
CARZ-NS 180 Explosion Isolation Flap Valve NW, Ex D St1, St2
CARZ-NS 200 Explosion Isolation Flap Valve QF, Ex D St1, St2
CARZ-NS 200 Explosion Isolation Flap Valve FL, Ex D St1, St2
CARZ-NS 200 Explosion Isolation Flap Valve NW, Ex D St1, St2
CARZ-NS 250 Explosion Isolation Flap Valve QF, Ex D St1, St2
CARZ-NS 250 Explosion Isolation Flap Valve FL, Ex D St1, St2
CARZ-NS 250 Explosion Isolation Flap Valve NW, Ex D St1, St2
ArtNo: 73001558
CARZ support frame suspended 160
|
ArtNo: 73001559
CARZ support frame suspended 180
|
ArtNo: 73001560
CARZ support frame suspended 200
|
ArtNo: 73001562
CARZ support frame suspended 315
|
ArtNo: 73001566
CARZ support frame suspended 500
|
ArtNo: 73001569
CARZ support frame suspended 710
|
ArtNo: 73001571
Carz support frame suspended 900
|
ArtNo: 73001572
CARZ support frame suspended 1000
|
ArtNo: 73001573
CARZ support frame wall-hanging 160
|
ArtNo: 73001574
CARZ support frame wall-hanging 180
|
ArtNo: 73001575
CARZ support frame wall-hanging 200
|
ArtNo: 73001576
CARZ support frame wall-hanging 250
|
ArtNo: 73001577
CARZ support frame wall-hanging 315
|
ArtNo: 73001578
CARZ support frame wall-hanging 350
|
ArtNo: 73001579
CARZ support frame wall-hanging 400
|
ArtNo: 73001580
CARZ support frame wall-hanging 450
|
ArtNo: 73001581
CARZ support frame wall-hanging 500
|
ArtNo: 73001582
CARZ support frame wall-hanging 560
|
ArtNo: 73001586
CARZ support frame wall-hanging 900
|
ArtNo: 73001587
CARZ support frame wall-hanging 1000
|
